Indicator Scales 3590EKR

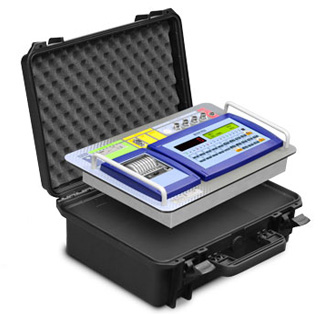

3590EKR "ENTERPRISE": Weight Indicator with Transport Case for Industrial Application

Indicator Scales 3590EKR

Indikator 3590EKR berat digital kinerja tinggi multifungsi dalam versi Rak, lengkap dengan 4 konektor untuk menghubungkan platform, baterai isi ulang bawaan dengan pengisi daya, dan casing. Sangat cocok untuk aplikasi penimbangan mobile. Dapat disetujui CE-M (OIML R-76 / EN 45501).

Indicator 3590EKR-1 Indicator 3590EKR-2 Indicator Case

I/O SECTION

  1. Available on panel:
    1. One RS232 serial ports, for connection to PC, on 9-pole connector.
  2. Available on internal side:
    1. Two RS232 serial ports, for connection to printer, PC or PLC, radio module, and optional interfaces.
    2. One RS232 serial port (optional RS485), for connection to repeater, remote scale, badge reader.
    3. Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard.
    4. 4 optoisolated outputs (optional).
    5. 2 optoisolated inputs (optional).

APPLICATION SOFTWARE

  1. Supplied As Standard:
    1. AF01: Totalization and formula weighing
  2. Optional:
    1. AF02: Pieces/quantity counting
    2. AF03: Weighbridges - Input/Output vehicle
    3. AF04: Statistical checking of prepackaged goods
    4. AF05: Price compunting and industrial labelling
    5. AF08: Wheel and axle static weighing with 2 or various platforms
    6. AF09: Dynamic and static axle weighing with 2 platforms
  1. CE-M approvable (OIML R-76 / EN 45501)
  2. EU Type Examination Certificate (45501:2015)
  3. OIML R76
  4. OIML R51 - MID
  5. OIML R134 (AF09)
M12 Connector M12 Connector

Main Features:

  1. ABS transport case, with housing for the indicator and space for extra accessories.
  2. 3590EXP series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for optional printer, connectors for platforms, and serial output on 9-pole connector.
  3. Dimensions: 325x460x170 mm. Weight: about 5 kg.
  4. 25-key alphanumerical waterproof keyboard.
  5. Highly efficient red led display with 6 digits 15mm high.
  6. Backlit LCD graphic 25x100mm display.
  7. Synoptic bar graph with 16 bright LEDs showing the active functions.
  8. Permanent time/date and data storage.
  9. Fitted with alibi memory.
  10. Functions available with the DINITOOLS utility:
    1. Configuration, calibration, data entry and print formatting.
    2. Recording and filing of all the information on PC, complete with the calibration data of each instrument.
    3. Complete retrieval of the data saved for quick substitution.
    4. Instrument calibration with numeric values.
  11. Selection of the programme language directly in the set-up.
  12. 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
  13. Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
  14. Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  15. Fitted with 4 connectors for connection up to 4 platforms with AF08 software (up to 2 with AF03, 1 with AF09).
  16. Connectable with up to 16 analogue 350-Ohm (or 45 1000-Ohm) load cells.
  17. Connectable with the main digital load cells available on the market.
  18. Built-in rechargeable battery (10-hour minimum operating time) with fitted external 12 Vdc / 230 Vac adapter.
  19. All versions are fitted with attached thermal printer.
